Product Details
＋

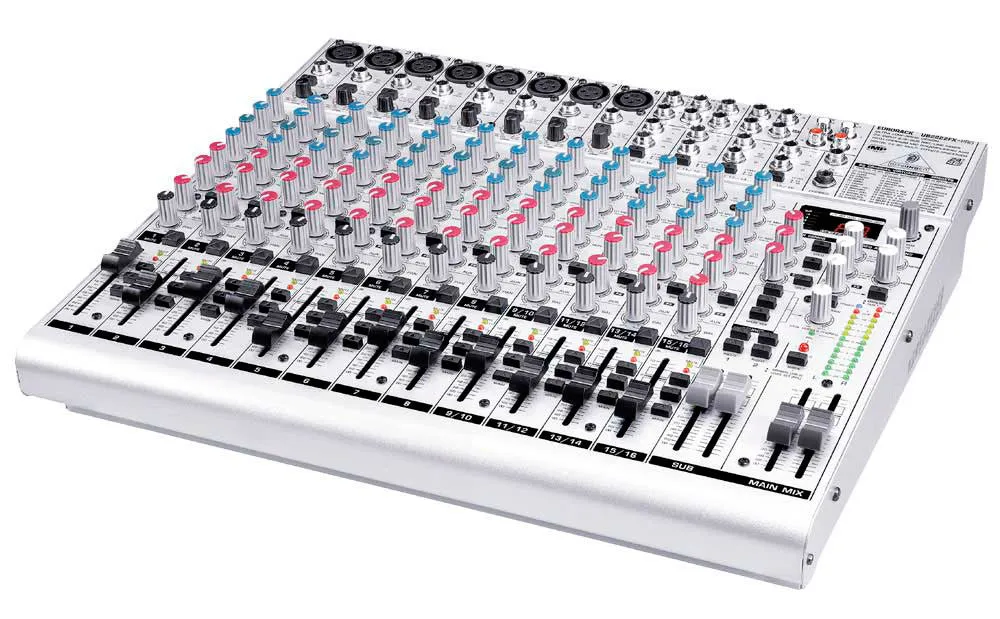

- This is Behringer's second-largest console in the entire UB Series Mixing Consoles. There are 16 balanced high-headroom line inputs, 8 INVISIBLE MIC PREAMPs (IMPs), 3 aux sends per channel (1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications and 1 post fader for internal FX or as external send). There are effective, extremely musical 3-band EQs with semi-parametric mid bands plus switchable low-cut filters on all mono channels. 2 subgroups with separate outputs for added routing flexibility and 3 multi-functional stereo aux returns with flexible routing are also there. You will also find the integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets.
- Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
- 8 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps with:- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs- Ultra-wide 60 dB gain range- Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
- Integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets including reverb, delay, chorus, compressor, tube distortion, vinylizer and more plus 1 kHz test tone generator
- Effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels
- Inserts on each mono channel for flexible connection of outboard equipment
- 16 balanced high-headroom line inputs with 4/-10 level selection on stereo channels
- State-of-the-art 4580 operational amplifiers provide lowest noise and distortion-better than 4560 op amps
- 3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
- Peak LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
- 2 subgroups with separate outputs for added routing flexibility
- 3 multi-functional stereo aux returns with flexible routing
- Balanced main mix outputs with TRS and gold-plated XLR connectors, separate control room, headphones and stereo tape outputs
- Control room/phones outputs with multi-input source matrix
- Tape inputs assignable to main mix or control room/phones outputs
- Switchable 48 V phantom power for condenser microphones
- Long-wearing 60 mm logarithmic-taper ALPS(tm) faders and sealed rotary controls
- Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
- Extremely rugged steel construction ensures long life even under the most demanding conditions
- Rack mount brackets included
- Manufactured under ISO9000 certified management system
