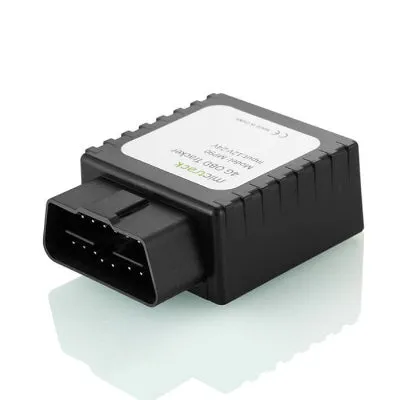

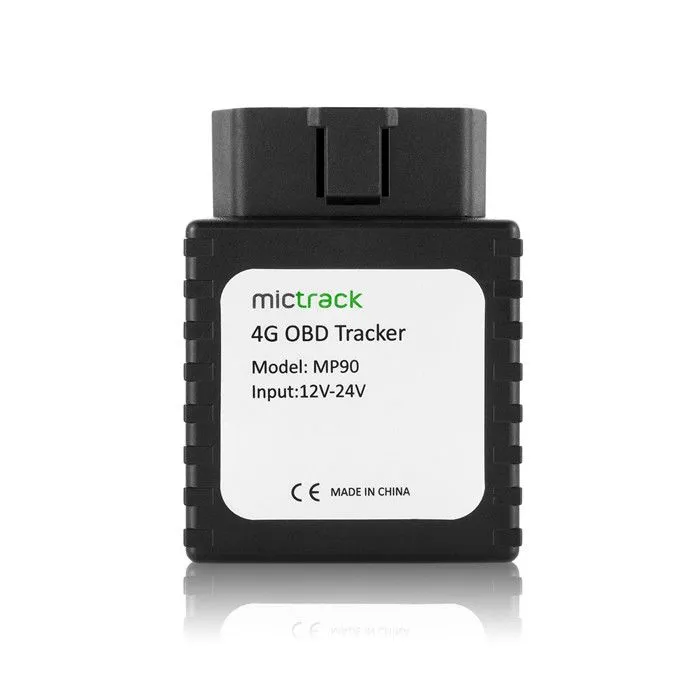

The MP90 is a plug-and-play 4G OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used to locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, the user also can real time tracking and check the historical route travelled.
1. Features
- 4G FDD LTE network support (also support 3G/2G network)
- OBD II connector easy to install (Plug and Play)
- Real-time position acquiring
- Vehicle trip history and mileage data on web tracking platform
- Geo-Fence alarm and reporting
- Vehicle towing / Movement alarm
- Over-Speed alarm and reporting
- Remove and disconnect alarm
- Backup battery low power alarm
- Car battery low power alarm
- High temperature alarm
- Power saving / sleep mode
- Mileage report
2. Applications
- Vehicle/truck tracking
- Asset security
- Fleet Management
3. Advantages
- Qualcomm 4G LTE chip solutions
- Easy installation Plug and Play
- U-BLOX7 GPS chipset
- Unique design & White Label
- Protocol is open and compatible
- support
- CE Certificate
- OEM/ODM
4. Specification
|
Dimension |
67(L) x 50(W) x 25(H) mm |
|
Weight |
65g |
|
Power supply |
12-24 VDC |
|
Backup battery |
3.7 V 120 mAh |
|
Power consumption |
50mA standby current at 12 V |
|
Operating temperature |
-20°C to 55°C |
|
Humidity |
5%~95% non-concretion |
|
Working hour |
2 hours in power-saving mode, 0.5 hours in normal mode |
|
LED indicator |
4G(RED), GPS(BLUE) |
|
Sensor |
3D acceleration sensor |
|
Antenna |
Internal 4G & GPS antennas |
|
GPS Sensitivity |
-162dBm |
|
Positioning Accuracy |
2.5m |
|
4G Frequency bands |
MP90-A (US/Canada/Mexico) 4G LTE: B2/B4/B12 3G WCDMA: 850/1700/1900MHz MP90-E (Europe/Asia/Africa) 4G LTE: B1/B3/B7/B8/B20/B28A 3G WCDMA : 900/2100MHz 2G: 900/1800MHz MP90-AU (Australia/New Zealand) 4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G WCDMA: 850/900/1900/2100MHz 2G :850/900/1800/1900MMz Note: Select correct device according to your local frequency bands. |
|
SIM Card interface |
Micro Size SIM |
5. Interface
6. GPS Tracking Platform
Option 1: use tracker platform.
$5/per year
$20/life time
Option 2: use ElasticTracker shared server platform
(details will be updated soon.)
Option 3: use ElasticTracker dedicated server platform
(details will be updated soon.)
7. Integrate with the third party platform
8. In the box
- 1* MP90 4G OBD Tracker
- 1* User Manual
